Flash Sale V Groove Semi Steel Cast Iron Swivel Top Plate Caster Set of 4 w/4 x 2 Silver Wheels - Includes 4 Swivel - 3200 lbs Total Capacity - Service Caster Brand A quick review
So you can check out the other reviews at Amazon.com
only with $
| Color | 4 Swivel - No Brake - Silver |
| Brand | Service Caster |
| Material | Cast Iron V-Groove |
| Unit Count | 4 |
| Load Capacity | 800 Pounds |
- These Service Caster Series #30 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
- Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 1,100 lbs Capacity/Caster, 6": 1,200 lbs. Capacity/Caster, and 8": 1,250 lbs Capacity/Caster
- Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
- Brake options include a top lock brake (TLB), or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
- Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Product Description
SCC-30-VGR
About Service Caster
For over 25 years, Service Caster has been one of the largest caster and wheel companies in North America. We design, manufacture, assemble, and distribute casters worldwide from our location in West Reading, Pennsylvania. Trust us to assist you with selecting, designing, and integrating casters into your application. Choose from a wide range of casters and wheels designed for light to extra heavy duty use from our extensive catalog of over 200 brands, including the Service Caster brand.

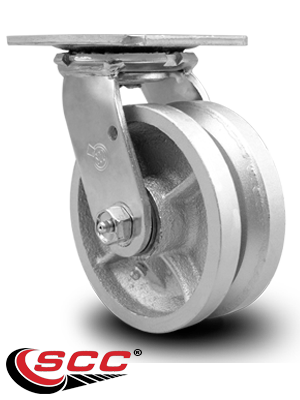

Heavy Duty Semi Steel Cast Iron V-Groove
Designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250 lbs and in temperatures up to 600°F.
Attributes For Series 30 Semi Steel Cast Iron V-Groove Wheel
- Wheels Sizes- 4", 5", 6", 8"
- Brake Types- Top Locking, Total Locking, Bolt On Swivel Lock
- Attachments Types- Top Plate
- Finishes- Zinc Plating
Attachment & Brake Options
 |
 |
 |
 |
|---|---|---|---|
Top PlateProvides the utmost stability by supporting the caster at four points. Available in rigid and swivel, with optional top lock or total lock brakes. | Top Lock BrakeTop Lock Brake (TLB) places a positive locking force against the top tread of the wheel to securely hold heavy loads. | Total Lock BrakeTotal Locking Brake (TTL) solidly locks both the swivel and wheel, providing an exceptionally sturdy base when engaged. | Bolt On Swivel LockBSL pull ring engages the spring-loaded bolt into one of 4 notches found on the swivel raceway, instantly converting a swivel caster to rigid for straight-line tracking at any 90 degree angle. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Series 30- Heavy Duty | Series 20- Light Duty | Series 92- Extra Heavy Duty | Series 100- Pneumatic | amazon.com/servicecaster | ||
| Weight Capacity | 1250 | 300 | 3500 | 450 | ||
| Top Plate Dimensions | 4" x 4.5" | 2.5" x 3.625" | 5.25" x 7.25" | 4" x 4.5" | ||
| Wheel Sizes | 4", 5", 6", 8" | 3", 3.5", 4", 5", 6" | 6", 8", 10", 12" | 6", 8", 10", 12" | ||
| Brake Types | Top Lock, Total Lock, Bolt On Swivel Lock | Top Lock, Total Lock | Side Lock, Bolt On Swivel | Top Lock, Side Lock, Bolt On Swivel | ||
| Attachment Types | Top Plate | Top Plate, Bolt Hole, Threaded Stem | Top Plate | Top Plate |
Product Specifications
Specification for this product family
